תיאור המוצר
- מותג: Audison
- דגם: Th Quattro
- גליון נתונים טכני: לחץ להורדה
- מדריך למשתמש: לחץ להורדה

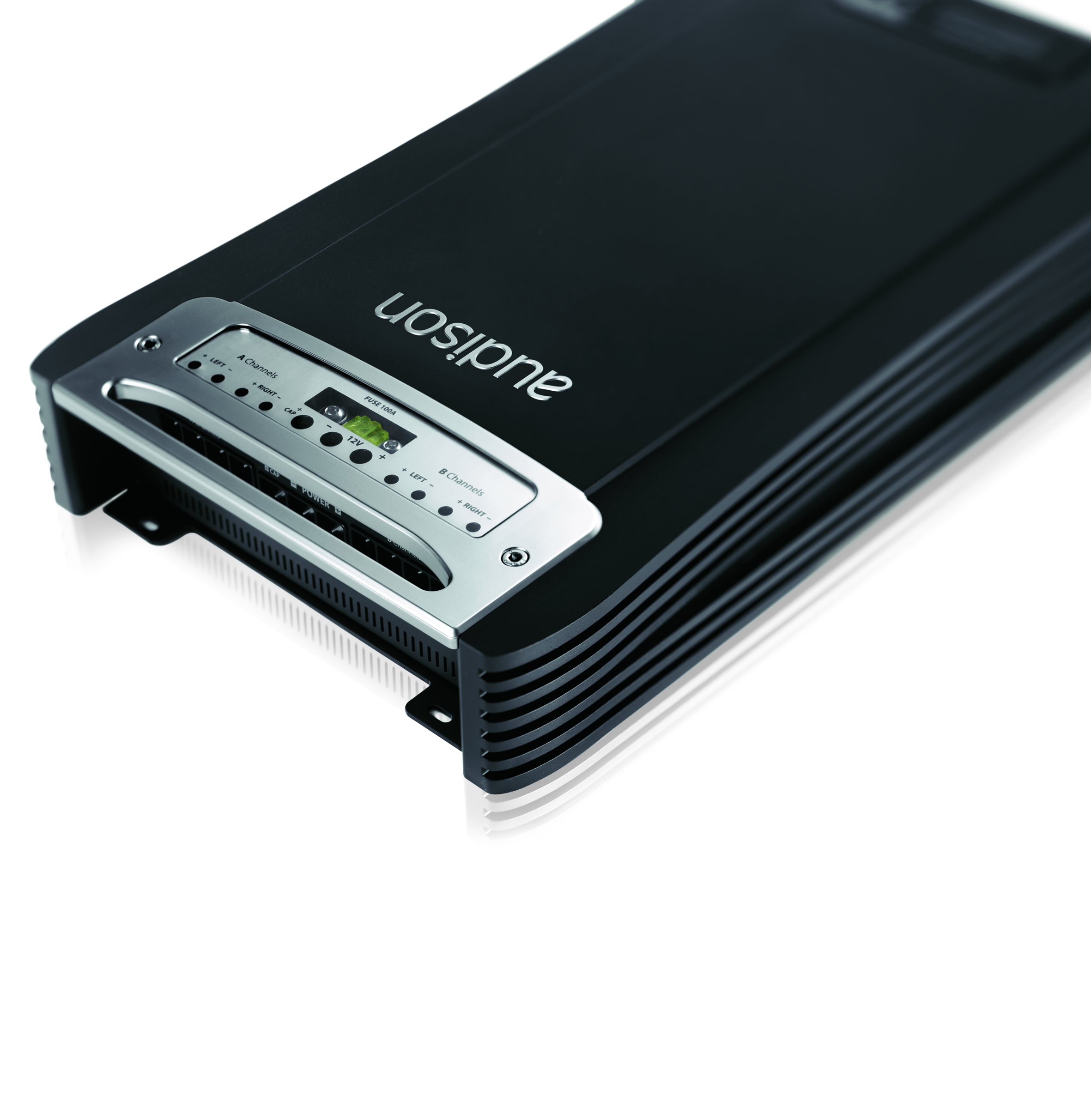

The Thesis TH amplifiers are manufactured using state-of-the-art analog and digital technology. Class A amplification stage, multi-standard analog and digital inputs and the control of the amplifier through a microprocessor make this product the most evolved among the Audison range. TH quattro is a multi-channel amplifier fully configurable by the microprocessor. The four-channel configuration enables universal use of this amplifier for no-limit quality and functionality.
DRC – Digital Remote Control
The DRC mounted in the vehicle dashboard provides access to the functions of all the Thesis amplifiers installed in the system, all within your immediate grasp.
Providing source selection between analog and optical inputs, it also controls the essential functions you need to access frequently.
The DRC mounted in the vehicle dashboard provides access to the functions of all the Thesis amplifiers installed in the system, all within your immediate grasp.
Providing source selection between analog and optical inputs, it also controls the essential functions you need to access frequently.
מפרט טכני
- Power supply :
Voltage: 11-15VDC
Idling current (Dual Power Setting): 2.6-8.9A
Idling current when off: 0.04mA
Consumption @ 14.4 VDC , (1 ohm) 105A
Remote In 7-15VDC (1mA)
Remote Out: 12VDC (20mA)
Fuse: 100A - Amplifier stage :
Distortion – THD @1KHz 4Ohm 90% Power: 0.03%
Bandwidth @ -3 db , 2VRMS 4Ohm: 5-70Khz
S/N ratio @A weighted , 1 V Max Power: 104dBA
Damping factor @ 1KHZ , @ 2VRMS 4Ohm: 80
Pre In sensitivity: 0.3-4.8 VRMS
Pre In Impedance: 15 Kohm
Load impedance (Min @ Dual Power Mode – Hi Current ) :
4Ch: 1 Ohm
2Ch: 2 Ohm
Nominal Power (RMS) @ 12 VDC THD :
Dual Power mode – Hi Current :
4Ch @ 4 Ohm : 115W X 4
Dual Power Mode – A Class :
4Ch @ 4 Ohm : 40W X4
Output Power (RMS) @ 14.4VDC , 1% THD :
Dual Power Mode – Hi Current
4Ch @ 2 Ohm : 260W X 4
4Ch @ 1 Ohm : 340W X 4
3Ch @ 4 Ohm : 150W x 2+ 540 X 1
3Ch @ 2 Ohm : 250W X 2 +650W X 1
2Ch @ 4 Ohm : 500W X 2
2Ch @ 2 Ohm : 700W X 2
Dual Power Mode A Class :
4Ch @ 4 Ohm : 55W X 4 - CEA SPECIFICATION :
Output power @ 4 Ω, 1% THD+N, 14.4 V: 150W x 4Ch
SN ratio (ref. 1 W output): 80 dBAOther functions :
ASC (Audison Status Controller) FUNCTIONS
AMP IDentifications, DUAL POWER settings,
AD Link inputs, AC Link digital bus, DRC controls,
ACNet software, Status Monitor, Protections - Inputs/Outputs/Filters :
Inputs: PRE – S/PDIF (Max 192 kHz / 24 bit) Optical and AD Link
Outputs: PRE Bypass / AD Link
Filters: 2 Removable kit: (Hi-pass / Lo-pass / Bandpass 12/24dB)
32 steps 18 ÷ 7.5k Hz with 8 standard & 2 customizable modules - Size :
Max size (mm/inches): 259 x 510 x 67 / 10”1/4 x 20”1/8 x 2”11/16
Weight (kg/lb): 10,3 / 22.71
