תיאור המוצר
- מותג: Audison
- דגם: TH 6.5 sax
- גליון נתונים טכני: לחץ להורדה
- מדריך למשתמש: לחץ להורדה

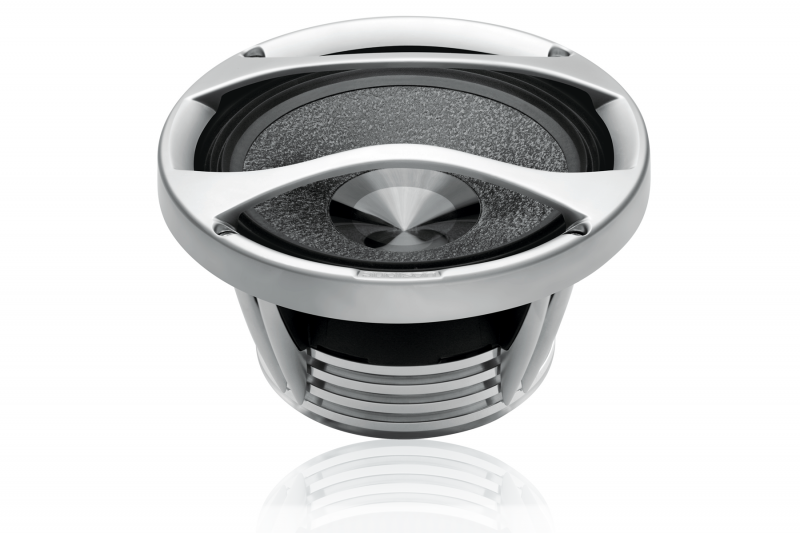

The TH 6.5 sax captures the listener with its sound quality, timbre accuracy and impulsive response.
The X-pulp cone, produced using cellulose pulp and a glass fibre mesh, provides the highest rigidity with the warm and detailed sound typical of cellulose.
The high precision mechanical parts were created by machining solid one piece material, including a REN (Rare Earth Neodymium) magnet. The single layer, flat wire, edge wound voice coil enhances the compact size and light weight of the mobile group while still maintaining unmatched thermal dissipation. The anti-resonant die cast alloy basket, the aerodynamic profile of the spokes, together with the "open-air" design drastically reduce back wave reflections.
The zinc alloy grille protects without altering the acoustic performance.
The X-pulp cone, produced using cellulose pulp and a glass fibre mesh, provides the highest rigidity with the warm and detailed sound typical of cellulose.
The high precision mechanical parts were created by machining solid one piece material, including a REN (Rare Earth Neodymium) magnet. The single layer, flat wire, edge wound voice coil enhances the compact size and light weight of the mobile group while still maintaining unmatched thermal dissipation. The anti-resonant die cast alloy basket, the aerodynamic profile of the spokes, together with the "open-air" design drastically reduce back wave reflections.
The zinc alloy grille protects without altering the acoustic performance.
Technical Data
Comp | Woofer |
Size | 165 mm (6" ½) |
Power Handling | 150 W Continuous Power 300 W Peak Power |
Impedance | 6 Ohm |
Frequency Response | 35 ÷ 4k Hz |
Sensitivity | 91 dB/Spl |
Magnet | Neodymium |
Dome | X-pulp / Polycrystal |
מפרט טכני
- Technical Specifications :
- Component Woofer
- Size mm 165 (6”1/2)
- Power Handling W
peak 300
continuous 150 - Impedance Ω 6
- Frequency Response Hz 35 ÷ 4k
- Sensitivity dB/SPL 91
- Outer Ø mm 163
- Mounting Ø mm 145,5
- Total depth mm 81
- Mount. depth mm 73
- Magnet size mm 90
- Weight of one component kg 1,5
- Voice coil Ø mm 40
