- מותג: Hertz
- דגם: HCP 5D
- גליון נתונים טכני: לחץ להורדה
- מדריך למשתמש: לחץ להורדה

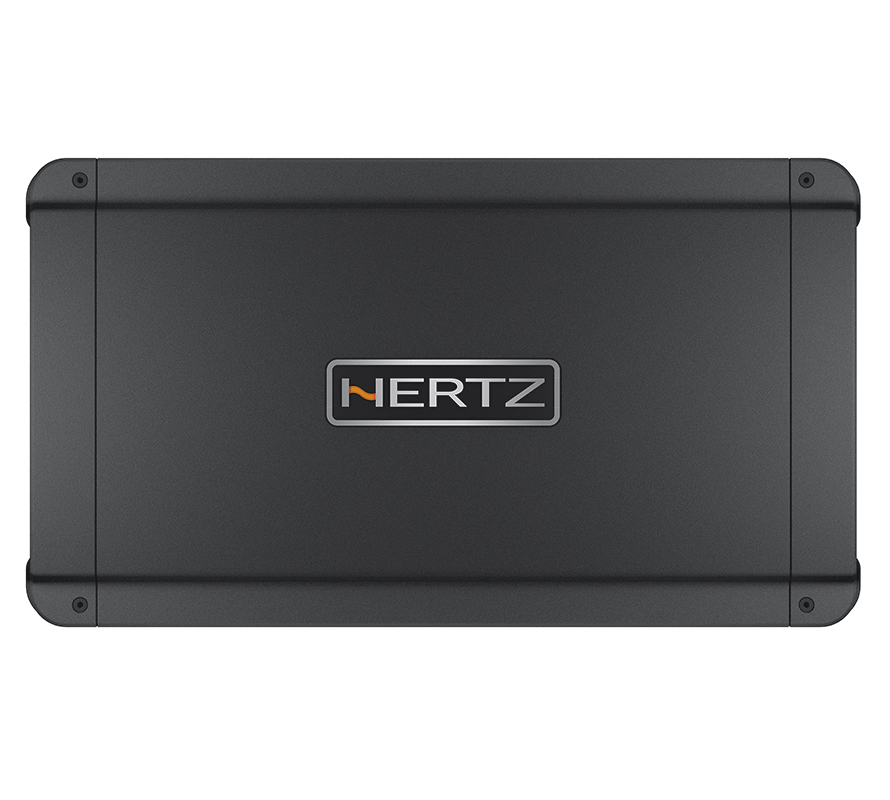

HCP 5D is a front + rear + sub complete car audio amplifier with five very powerful D class channels. It features a wide range of inputs to obtain the best configuration with every car audio source. HCP 5 D is suitable in a five channels system with subwoofer, in a tree channel front + sub system using the front and rear built-in filters that include also a bass boost circuit and a subsonic filter.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.Besides, using the HRC accessory (Hertz Remote Control), the subwoofer volume can be remote controlled with extreme preciseness.
Technologies
-
REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.
-
COMPLETED FILTER SECTION
Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source.
-
HCP ELECTRONICS
Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker level inputs. Power supply stage features a multiple winding transformer and Low-ESR 105°C capacitors, selected to ensure high efficiency and current capability.
-
ART
Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.
Awards
- Channel mode 5 – 3
- Output Power (RMS) @ 14.4 VDC
5 Ch 65 W x 4 + 200 W x 1 (4Ω)
5 Ch 105 W x 4 + 330 W x 1 (2Ω)
3 Ch 210 W x 2 (4Ω) + 200 W x 1 (4Ω)
3 Ch 210 W x 2 (4 Ω) + 330 W x 1 (2 Ω) - Filters
Bypass Yes
Hi-Pass A Ch: 50 ÷ 5 kHz @ 12 dB/Oct. B Ch: 50 ÷ 500 Hz @ 12 dB/Oct.
Lo-Pass C Ch: 50 ÷ 500 Hz @ 24 dB/Oct.
Band-Pass A Ch: 50 ÷ 500 Hz(Hi) @ 12 dB/Oct. B Ch: 50 ÷ 5 kHz(Lo) @ 12 B/Oct.
Subsonic 25 Hz @ 24 dB/Oct. - Distortion – THD (100Hz @ 4Ω) 0.02%
- S/N Ratio (A weighted @ 1V) 100
- Damping factor (100Hz @ 4Ω)
A & B Ch 100
C Ch 250 - Size W x D x H mm (in.) 345 x 190 x 50 (13.58 x 7.48 x 1.97)
