- מותג: Audison
- דגם: bit Play HD
- גליון נתונים טכני: לחץ להורדה
- מדריך למשתמש: לחץ להורדה

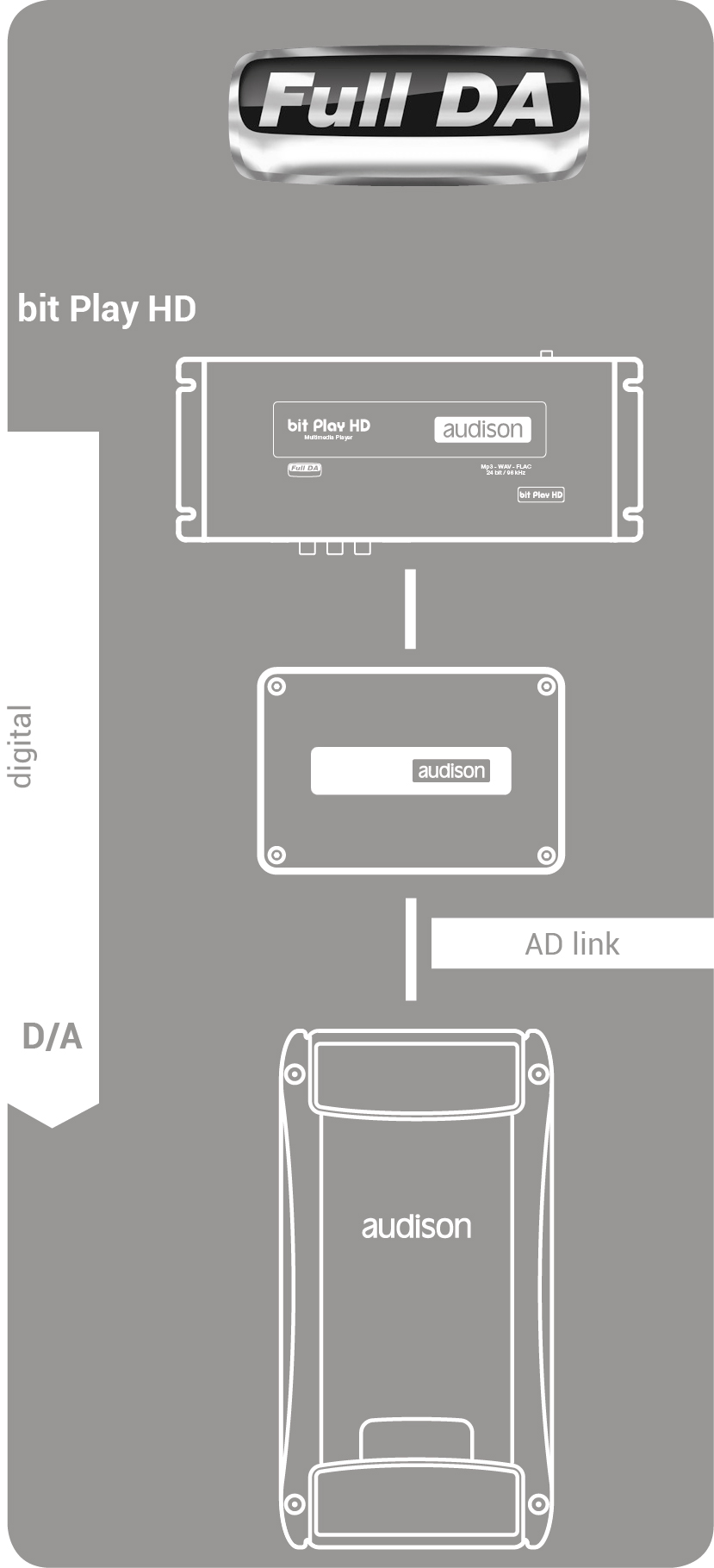

Wi-Fi high resolution audio streaming and playlist manageable from your Android or Apple device through dedicated App. Reproduction of 24 bit / 96 kHz FLAC files taking audio far beyond the CD standards. Digital output to build an Audison Full DA high resolution system and HDMI output. SSD unit enclosed in a slot with mechanically damped housing for a smooth in-car music reproduction. These and many more are the features which make bit Play HD the object of desire of any car audio enthusiast.
*Supplied with the product in the bit Play HD SSD version
FLAC encoded, with up to 96 kHz/24 bit resolution audio tracks.
Compatible with AAC, MP3, OGG, WAVE.
Video Formats
Multimedia video MPEG-1, -2, -4 encoded with resolution up to 1080p.
Compatible with AVI, ASF, BD-ISO, DVD-ISO, DivX 3/4/5, FLV, MKV, RM /
RMVB, Xvid SD/HD.
TOSLINK Optical Output
S/PDIF digital optical output to transfer audio data with a resolution up to
96 kHz/24 bit, for use with Audison products with digital input.
RCA Analog Output
RCA analog audio output to connect the player to an amplifier or to a source
with auxiliary inputs.
Video Outputs
1 NTSC/PAL composite video output.
1 HDMI video output with a resolution up to 1080p for playing Full HD videos.
Internal Memory
240GB SSD 2.5” SATA 3.0 solid state drive, vibrationally dampened,
included in bit Play HD SSD.
Data Connections
2 USB (2.0) ports to connect an external Hard Drive or Pen Drive.
1 USB (2.0) port to update the product and for the USB Wi-Fi Dongle.
Control Connections
1 optional DRC input to connect the Audison Digital Remote Control.
1 AC Link output to control Audison devices.

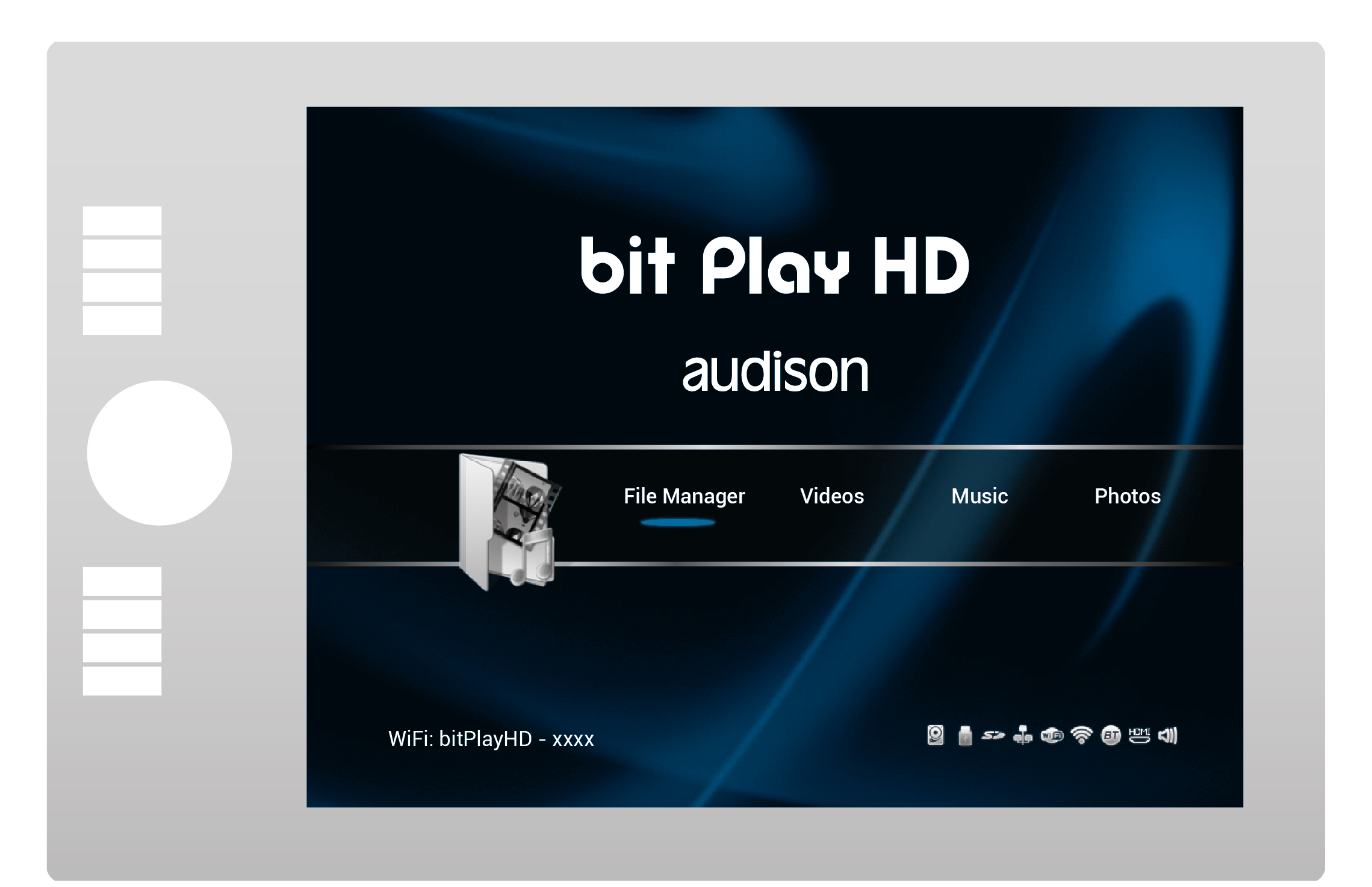

User Interface
Audio/Video and multimedia content management with optimized viewing for
the car environment.
iPhone/Android App
Audison App to manage the media library and control the bit Play HD through
Smartphones and Tablets. Available on the App store and Play store.
Compatible with iPhone/Android Apps using the DLNA protocol.
Remote Control
• ARC (Advance Remote Control).
Compact design controls all the player functions.
• USR (User Remote Control).
Ultra-compact design to simplify management of audio playlists.
DRC MP – Digital Remote Control Multimedia Play OPTIONAL
The new Audison DRC MP (Digital Remote Control Multimedia Play) is compatible with all the Audisonelectronics featuring AC Link bus. Its slim profile along with the holder supplied with it eases the installation in the best position inside the car. Thanks to the new Joystick, “Rubber Touch” finished for best control of the movements along the four direction axes, the 'DRC Settings' menu can be adjusted and navigation is also possible through the 'Navy Command' function if the system features an Audison bit Play HD with video output connected to a monitor.
Features

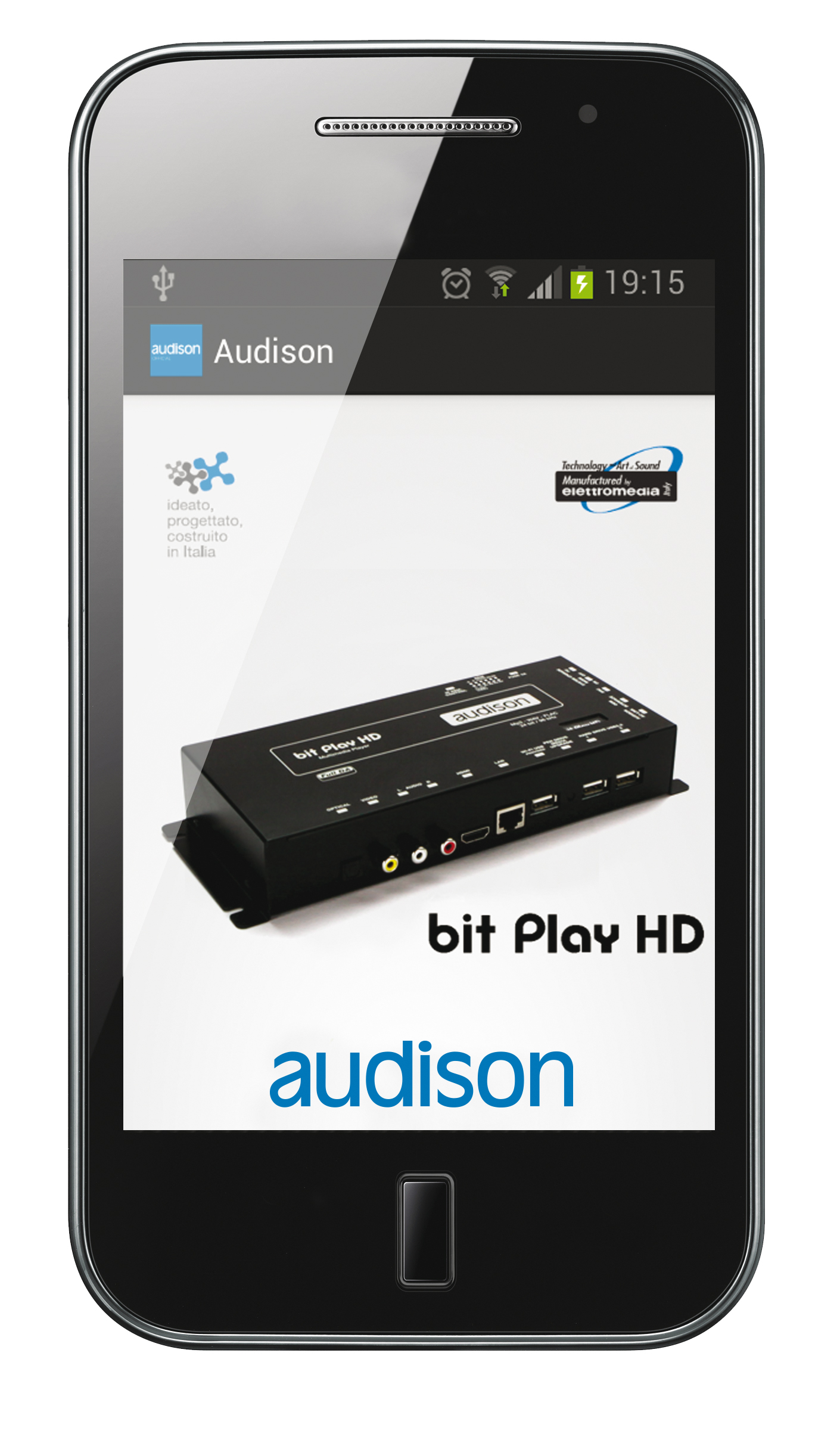

Audison bit Play HD App The Audison bit Play HD App is an application providing the ability to control the Audison bit Play HD multimedia player through the WI-FI network of your smartphone or tablet. Once you install the bit Play HD player in your car, this App will let you listen to the music stored in your smartphone or tablet directly through your car audio system. Or, you can control the bit Play HD player to
listen to music stored inside of it through its internal SSD or through the USB mass storage devices connected to the USB plugs. Through the Audison bit Play HD App as well as the Apps using the DLNA protocol you can select and start playing a musical track, adjust volume and manage playback controls. Only with the Audison bit Play HD App you can transfer files between the USB mass storage devices or within the internal SSD.
EISA Award 2014-2015
The bit Play HD has been given the EISA Award attaining the title of “European In-Car HD Media Player 2014-2015".
- Power Supply :
Voltage 8.5 ÷ 14 VDC
Idling current 1.0 A with internal SSD A
Fuse 3 A
Remote IN 7 ÷ 15 VDC (1 mA)
Remote OUT 12 VDC (130 mA) - General Features :
User Interface Dual mode:
1) Advanced control on Video out via Remote control
2) Basic control via iOS/Android App
Smartphone Control Dedicated Audison App for Android and iOS smartphone, to llow:
1) Wi-Fi Streaming of smartphone multimedia contents to bit Play HD output (Android only). Alternatively standard DLNA Apps (iOS/Android).
2) Play the bit PlayHD storage multimedia contents.
3) File management of bit Play HD storage contents, with copy, delete and move functions
Media Storage
1) 240GB SSD 2.5’’ (Included in bit Play HD SSD, internal, up to 2TB support)
2) External USB HDD/Pendrive/DVD drive
File System – Media Storage FAT32, NTFS, EXT3, HFS+ (Mac OS X) Wi-Fi 802.11n – Internal Hotspot with external USB Wi-Fi Dongle (supplied) - Multimedia Format :
Audio Formats Hi-Res Uncompressed:
WAV, FLAC (Up to 96kHz/24bit)
Compressed:
OGG, AAC, MPEG Audio (MP1, MP2, MP3, MPA)
Video Formats WMV, DivX, Xvid, MPEG, H264
Subtitle Formats MicroDVD [.sub], SubRip [.srt], Sub Station Alpha [.ssa], Sami [.smi], Idx+Sub, PGS
Image Formats JPG, BMP, PNG, GIF - Analog Signal stage :
Distortion – THD @ 1 kHz, 1 VRMS 0.003%
Bandwith 20 ÷ 20k Hz
S/N RATIO (A weighted) 100 dBA
Output Level 1 VRMS - Signal Connection :
Digital Video Output 1 x HDMI v1.3 (type A receptacle)
Resolution: 480p, 576p, 720p@50Hz/60Hz,
1080i@50Hz/60Hz, 1080p@50Hz/60Hz
Analog Video Ouput 1 x RCA – Composite video
Resolution: 576i (PAL), 480i (NTSC)
Toslink Optical Output 1 x S/P-DIF – PCM 96 kHz/24 bit
Analog Pre Out 2 x RCA, Left / Right - Data Connection :
USB Hard Drive / Pen Drive 2 x USB/A (1.1/2.0), USB extension supplied
LAN 1 x 10/100M Ethernet / RJ45 port for future upgrade (Car NAS; 3G/LTE router; etc.)
SATA 1 x internal mini SATA 2.0 port for 2.5” SSD Drive (Available version with SSD 240GB built-in)
Firmware Media Upgrade USB Pen Drive 1.1/2.0 (not supplied) - Control Connection :
Audison AC Link 1 x RJ12 – To Audison AC link provided devices Audison DRC 1 x RJ12
OEM Interface 1 x RJ12 – Ready for external interface
Steering Wheel Control Wires – Ready for In / Out control signal BUS for external interface
IR remote control 1x 3.5mm 4 way mini-jack for IR receiver with status LED (supplied)
Parking Brake Video Inhibition Wires – GND control to the parking brake; monitor power supply
Optical Receiver Enable Wire – Control to enable optical In for external devices
Status Led Wire – To external status LED (not supplied) - Infrared Remote Controls (Supplied) :
USR User Remote Control – Ultra-Compact 14 keys for audio control
ARC Advanced Remote Control – Compact 40 keys for audio/video control - Size / Weight & Temperature :
W x H x D (mm / in.) 249 x 98 x 41 / 9.80 x 3.85 x 1.61 in.
Weight (kg / lb.) 0,9 Kg /1.98 lb.
Ambient Operating Temperature 0°C to 50°C (32°F to 122°F)
