AV uno | 1700 W POWER AMPLIFIER

תמונה קטנה תמונה קטנה תמונה קטנה
סרטון
תיאור המוצר

AV uno is an amplifier featuring an innovative circuitry called POD (Power On Demand). It allows to combine the
plus points, in terms of audio quality and robustness, of the AB Class traditional amplifiers with the efficiency
of the D Class amplifiers.
AV uno is a mono amplifier designed to drive the subwoofer but also suitable for high power Dual Mono systems.
Power, control and outstanding final stages are capable to unbelievable bass and extraordinary musical quality
on the whole frequency range. AV uno also allows you to replace the analog input board with the digital one
(AV bit IN).


Power Output

Load Imp. Mono
4 Ohm 700 W x 1
2 Ohm 1300 W x 1
1 Ohm 1700 W x 1

Accessories
  • AV bit IN HD
    Digital interface for all AV amplifiers. It offers one AD Link and AC Link input as well as one AD Link and AC Link output for a perfect digital connection with digital processors (bit one and bit Ten D) to drive a multi-amplified system.
  • VCRA – Remote Sub Volume Control
    When you drive the subwoofer in mono, you can use VCRA Analog Remote Control by connecting the External Subwoofer Volume to the special SUB VOL socket.
מפרט טכני

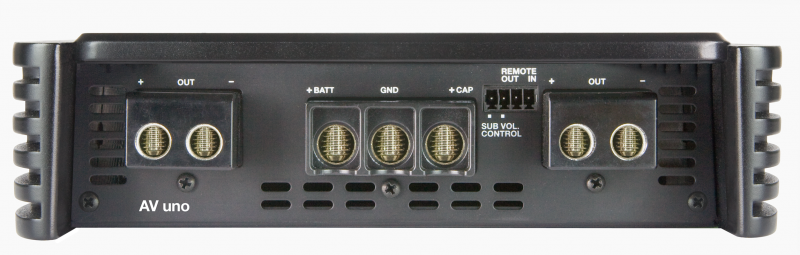

  • POWER SUPPLY :
    Power supply voltage:
       11 ÷ 15 VDC
    Idling current:   2.0 A
    Idling current when off:   0.02 mA
    Consumption @ 14.4 VDC (Max Musical Power):   120 A
  • AMPLIFIER STAGE :
    Distortion – THD (1kHz @ 4Ω):
       0.04 %
    Bandwidth (-3 dB):   7 ÷ 20k Hz
    S/N ratio (A weighted @ 1V):   95 dBA
    Damping factor (1k Hz @ 4Ω):   160
    Input sensitivity:   0.3 ÷ 5 V RMS
    Input impedance:   15k Ω
    Speaker-In sensitivity:   1.4 ÷ 24 V RMS
    Speaker-In impedance:   5k Ω
    Minimum load impedance:   1Ω
    NOMINAL POWER (RMS) @ 12 VDC, THD 0.3%, 4Ω:   700 W x 1
    OUTPUT POWER (RMS) @ 14.4 VDC,THD 1%:
    • 1 Ch:   700 W x 1(4Ω)
    • 1 Ch:   1300 W x 1(2Ω)
    • 1 Ch:   1700 W x 1(1Ω)
  • CEA SPECIFICATIONS :
    Output power @ 4Ω, 1% THD+N, 14.4 V:
    700 W x 1
    SN ratio (ref. 1 W output):   80 dBA

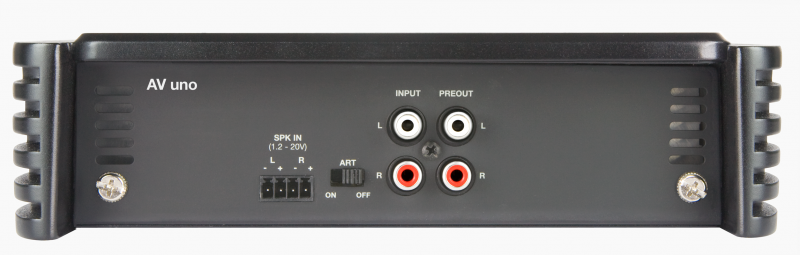

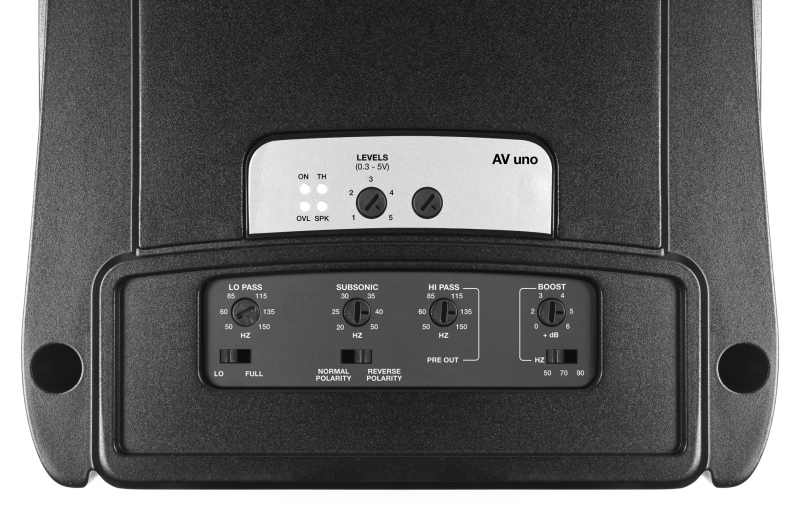

  • SIGNALS INPUTS / FILTERS :
    Inputs:
    Pre IN / Speakers IN
    Outputs:   Hi-Pass Pre OUT (50 ÷150 Hz)
    Filters (Full/Lo-Pass):   50 ÷ 150 Hz @ 24dB/Oct.
    Speakers polarity:   Normal / Inverted
    Bass boost (Freq./Gain):   50-70-90 Hz / 0 ÷ 6 dB
    Subsonic (Cont. adj.)   Off ÷ 50 Hz @ 24dB/Oct.
  • OTHER FUNCTIONS :
    Remote IN:
    7 ÷ 15 VDC – 1mA
    Remote OUT:   12 VDC – 50mA
    Fuse (Strip type):   100 A
    Remote SUB volume adj.:   (-50 ÷ 6) dB
  • SIZE / WEIGHT :
    Max size (mm/inches):
    220 x 470 x 58 / 8,66” x 18,50” x 2,28”
    Weight (kg/lb):   7.2 / 15.87
