תיאור המוצר
- מותג: Audison
- דגם: AV 5.1k
- מדריך למשתמש: לחץ להורדה
AV 5.1k, 1650 W (RMS) max, five-channels: with its hybrid design, it is the specialist amplifier for front + rear + subwoofer or multi-amplified front + subwoofer systems.
Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems.
The D Class mono section provides 1000 W (RMS) for an efficiency and powerful subwoofer output. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.
Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems.
The D Class mono section provides 1000 W (RMS) for an efficiency and powerful subwoofer output. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.
Power Output
| Load Imp. | 5 Channels |
| 4 Ohm | 75 W x 2 + 140 W x 2 + 600 W x 1 |
| 4/2 Ohm | 75 W x 2 + 140 W x 2 + 1000 W x 1 |
| 2/4 Ohm | 75 W x 2 + 250 W x 2 + 1000 W x 1 |
Accessories
- AV bit IN HD
Digital interface for all AV amplifiers. It offers one AD Link and AC Link input as well as one AD Link and AC Link output for a perfect digital connection with digital processors (bit one and bit Ten D) to drive a multi-amplified system.
- VCRA – Remote Sub Volume Control
Analog Remote Volume Control to drive the subwoofer in mono, by connecting the external subwoofer volume to the special sub volume socket (only with analog inputs).
מפרט טכני

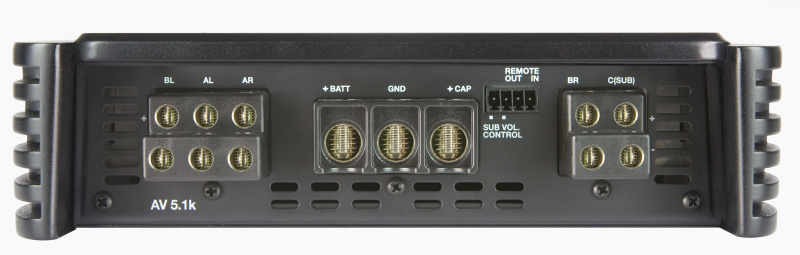

- POWER SUPPLY :
Power supply voltage: 11 ÷ 15 VDC
Idling current: 3 A
Idling current when off: 0.02 mA
Consumption @ 14.4 VDC (Max Musical Power): 110 A - AMPLIFIER STAGE :
Distortion – THD (1k Hz @ 4Ω ) A, B Ch: 0.05 %
Distortion – THD (100 Hz @ 4Ω), C (sub) Ch: 0.3 %
Bandwidth (-3 dB) A, B Ch: 4 ÷ 60k Hz
Bandwidth (-3 dB) C (sub) Ch: 7 ÷ 350 Hz
S/N ratio (A weighted @ 1V) A, B Ch: 100 dB
S/N ratio (A weighted @ 1V) C (sub) Ch: 87 dB
Damping factor (1k Hz @ 4Ω) A, B Ch: 100
Damping factor (100 Hz @ 4Ω) C (sub) Ch: 80
Input sensitivity: 0.3 ÷ 5 V RMS
Input impedance: 15k Ω
Speaker-In sensitivity: 1.4 ÷ 24 V RMS
Speaker-In impedance: 5k Ω
Minimum load impedance A / B / C Ch: 4Ω / 2Ω / 2Ω
NOMINAL POWER (RMS) A + B + C Ch @ 12 VDC, THD 0,3%, 4Ω:
50 W x 2 + 120 W x 2 + 500 W x 1
OUTPUT POWER (RMS) A + B + C Ch @ 14.4 VDC, THD 1%:
• 5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 600 W x 1 (4Ω)
• 5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 1000 W x 1 (2Ω)
• 5 Ch: 75 W x 2 (4Ω) + 250 W x 2 (2Ω) + 1000 W x 1 (2Ω) - CEA SPECIFICATIONS :
Output power @ 4Ω, 1% THD+N, 14.4 V:
75 W x 2 + 140 W x 2 + 600 W x 1
SN ratio (ref. 1W output):
75 W Channels: 80 dBA
140 W Channels: 80 dBA
600 W Channels: 78 dBA - SIGNALS INPUTS / FILTERS :

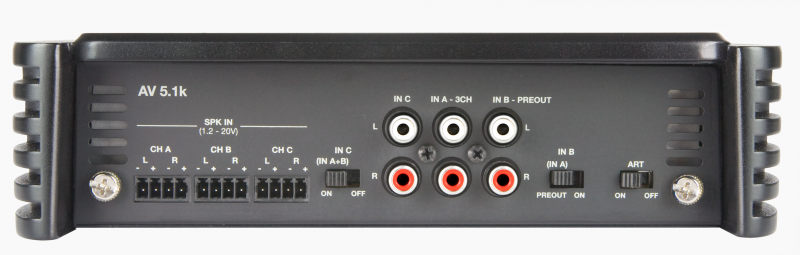

Inputs: Pre IN / Speakers IN
Outputs: Pre OUT Full Range

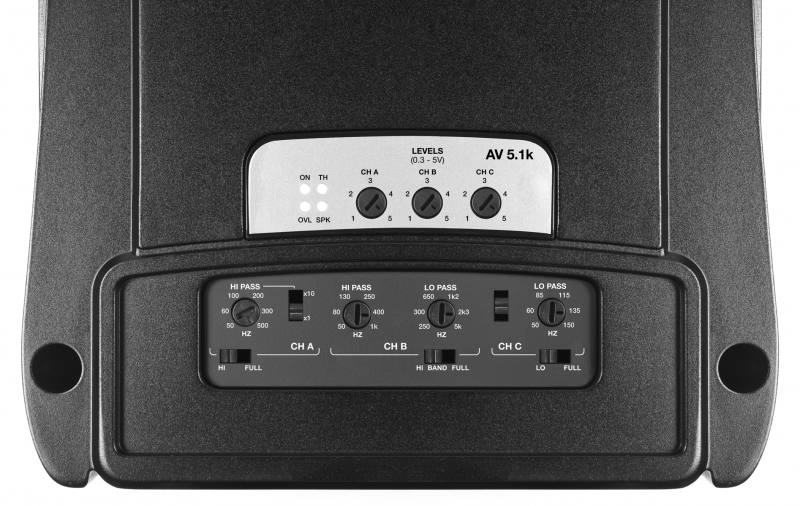

A Ch Filters (Full / Hi-Pass):
50 ÷ 5k Hz (2 range) @ 12 dB/Oct.
B Ch Filters (Full / Hi-Pass / Band-Pass):
50 ÷ 1k Hz (Hi) / 250 ÷ 5k (Lo) @ 12 dB/Oct.
C Ch Filters (Full / Lo-Pass):
50 ÷ 150 Hz @ 24 dB/Oct. - OTHER FUNCTIONS :
Remote IN: 7 ÷ 15 VDC – 1mA
Remote OUT: 12 VDC – 50mA
Fuse (Strip type): 100 A
Remote SUB volume adj.: (-50 ÷ 6) dB
Speakers IN Turn-on (ART): Selectable - SIZE / WEIGHT :
Max size (mm/inches): 220 x 470 x 58 / 8,66” x 18,50” x 2,28”
Weight (kg/lb): 7.2 / 15.87
