- מותג: Audison
- דגם: AV 10
- גליון נתונים טכני: לחץ להורדה
- מדריך למשתמש: לחץ להורדה

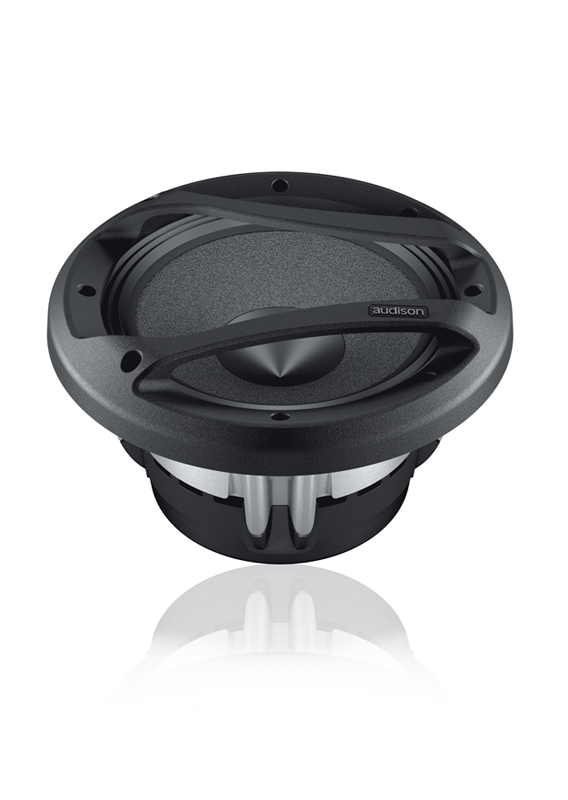

The AV 10 project started from the Thesis characteristics. AV 10 subwoofer offers full linearity and elevated performance under extreme conditions.
Equipped with an aluminum basket with a great aerodynamic structure, a cotton-fibre paper pressed cone with Light Damping treatment, a Triple Wave surround in butyl rubber and extremely light Copper Clad Aluminium Wire coils, it provides a very high efficiency and a dynamic sound.
1 The profile of the aerodynamic basket’s spokes,
along with the “open-air” design, ensures drastic
reduction of back-wave reflections.
2 The exclusive Butyl rubber “Triple Wave” surround
profile provides full linearity as well as reliable
performance under extreme conditions.
3 Extremely lightweight and compact, the CCAW
(Copper Clad Aluminium Wire) voice coils wound
on double layer provide very high efficiency and
neat, dynamic sound.
4 Cotton-fibre pressed paper cone with “Light
Damping” treatment.
5 The Radial Venting System ensures high thermal
capability, power handling and reliability.
Technical Data
| Comp | Single Coil Subwoofer |
| Size | 250 mm (10") |
| Power Handling | 400 W Continuous Power 800 W Peak Power |
| Impedance | 4 Ω |
| Frequency Response | 30 ÷ 1k Hz |
| Sensitivity | 91 dB/SPL |
| Magnet | High Density Flux Ferrite |
| Dome | Cotton-Fibre pressed paper with Light Damping treatment |
| Xmech | 23 (7/8") |
- TECHNICAL SPECIFICATIONS :
- Component Subwoofer
- Size mm (inch) 250 (10”)
- Power Handling W
peak 800
continuous 400 - Impedance Ω 4
- Freq. Response Hz 30 ÷ 1k
- Sensitivity dB/SPL 91
- Magnet size D x d x h mm (inch)
170 x 80 x 20 (6,7 x 3,1 x 0,8) - Total driver displacement l (cu.ft) 2,4 (146,5)
- Weight of one component kg (lb) 7,12 (15,7)
- Voice Coil Ø mm (inch) 60 (2,4)
- Magnet High density flux ferrite
- Cone Cotton-fibre pressed paper with light damping treatment
- Xmech* mm (inch) 23 (0,9)* Xmech: maximum mechanic excursion; indicates the maximum linear motion range of the speaker in both directions.
