APK 165 Ω2 | 2 WAY SYSTEM

1 2Ω impedance, to fully exploit the 65 W power per channel at 2Ω
of the AP8.9 bit amplifier.
2 75 Hz resonance frequency, to extend the frequency range down to
low frequencies up to 50 Hz and increase the SPL in the low range.
3 25 mm mobile voice coil to maximize efficiency achieving 95 dB.
4 10 mm winding height mobile voice coil to increase maximum linear
excursion up to 2,8 mm and minimize distortion, even at high listening levels.
5 APCX WF Ω2, dedicated woofer crossover with low-loss voice coils
to shape the frequency response for optimal match with the tweeter.
6 APCX TW Ω2, tweeter crossover featuring the Hi-Contour function
to enhance high frequencies, designed to achieve the correct timbre
balance with rich low frequencies guaranteed by the woofer.
7 AP 1 tweeter with acoustic lens designed to balance the frequency
response in the 10kHz – 13kHz range, to optimize the product’s
acoustic emission in the critical OEM placements, where the product
performance is affected by the presence of the factory grille.
8 Connection cable built in the passive crossover and ending with
“OEM Integration compliant” fast-on connectors. The ends, different
in each of the two poles, eliminate any possible connection errors, speeding
up the installation process and making it safe in the course of time.
9 AP 6.5 Ω2 woofer featuring water-repellent treated paper cone, with
profile developed with FEM simulation technology and optimized
with Klippel Scan Vibrometer.
10 Woofer with reduced mounting depth, providing ease of installation
in OEM placements.
11 Woofer with TPU (Thermoplastic Polyurethane) surround, featuring the
exclusive “Triple Wave” shallow profile, for maximum excursion linearity.
12 Woofer with compact basket, protected by abrasion-resistant and
scratch-proof coating. Damping epoxy glue provides perfect coupling
with the motor system.
13 Woofer with high current fast-on terminal with double contact on positive
and negative poles for high flexibility and quick connection. The terminal
features a temperature resistant plastic cover, protecting it against
accidental short circuits.
14 Developed with the KLIPPEL suite.

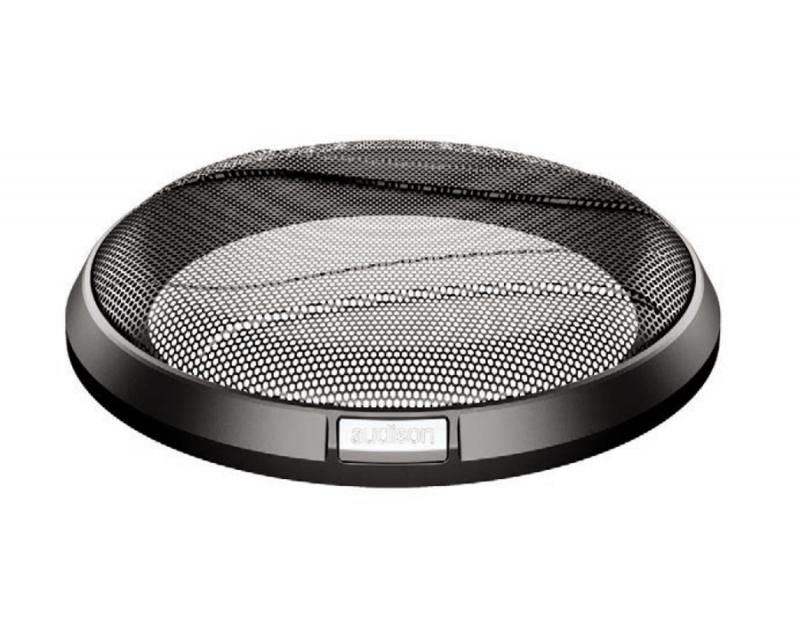

* Grille included

Technical Data
