AP8.9 bit | AMPLIFIER

תמונה קטנה תמונה קטנה תמונה קטנה
סרטון
תיאור המוצר
The AP8.9 bit amplifier was designed by Audison R&D Department to achieve maximum sound quality in OEM Integration applications. The powerful management software proves the ability to acquire the bit Drive presets which the Audison team fine-tuned specifically for your car. Thanks to the innovative power supply stage, a power of 520 W total can be achieved in an extremely compact case. The non-amplifiable ninth channel can be used to drive a subwoofer via the mono AP1 D amplifier.

Power Output

Load Imp. 8 Channels 4 Channels (bridge)
4 Ohm 35 W x 8 130 W x 4
2 Ohm 65 W x 8
Accessories
   iDataLink Maestro AR interface – (Optional)
Keep your factory features and expand your level of in-vehicle connectivity with iDatalink Maestro AR. When your AP bit* amplifier is installed into a compatible vehicle using the iDatalink Maestro AR interface, you’ll be able to enjoy the OEM receiver controls (volume, tone, balance, fader, source selection) to manage the equivalent DSP function of AP bit amplifiers, making this process transparent for the user. This way, all the Head Unit factory functions including Steering Wheel Controls, Media Player (AUX-in and USB ports), Hands-Free Telephone, Voice Commands, Satellite Radio will be totally maintained.Maestro iDatalink web site
  • * the optical input of the AP bit amps marked with a release version prior to R03 will be not usable when the amplifiers are connected with iDalink Maestro AR interface. R03 and R04 releases of all models will be fully compliant. You can check the release version on the bottom plate of the amp.
   DRC – Digital Remote Control
  • The DRC is the digital interface between the AP8.9 bit and the user. The DRC mounted in the vehicle dashboard, provides access to control of the inputs and volume adjustments, balance, fader and subwoofer volume. Providing source selection between main, aux and optical inputs, it also provides four of the configurations created and saved by the bit one right at hand. The DRC also controls the functions of the Audison Thesis amplifiers when these are installed in the same system.
   ECK DRC
  • DRC Cable Extension kit for installations on especially long vehicles. Total length of the supplied cable with the extension is equal to 6,5 m / 225,90".
   OP 1.5 • TOSLINK Optical Cable
  • Optical cable ending with TOSLINK connectors for S/PDIF digital audio signals. Cable length: 1,5 m / 59,05”.
   OP 4.5 • TOSLINK Optical Cable
  • Optical cable ending with TOSLINK connectors for S/PDIF digital audio signals. Cable length: 4,5 m/177,16”
   STA • F/F Socket TOSLINK adapter <
  • Optical adapter to extend optical cables featuring TOSLINK connectors.
   AP T-Harness “DCC”.
  • T-Harness “DCC” is the Plug&Play solution to integrate Audison Prima with the factory car audio system.
   AP Extension cables.
  • The Extension cable with Plug&Play connections allows total freedom in positioning the AP bit amplifiers.
   AP Speakers Output cables.
  • The AP Speakers Output for AP8.9 bit is dedicated to the connection of the AP bit amplifiers with the input/output Extension cable.
   SPM4 –   4 Ch Stereo Passive Mixer
  • Recommended to extend the number of inputs of AP bit amplifiers because they feature a De-equalizer (De-Eq). In that case, any possible non-linear acoustic emissions due to the mixing of the pre-existing filtered channels are duly compensated.
   DRC MP – Digital Remote Control Multimedia Play (OPTIONAL)
  • The new Audison DRC MP (Digital Remote Control Multimedia Play) is compatible with all the Audison electronics featuring AC Link bus. Its slim profile along with the holder supplied with it eases the installation in the best position inside the car. Thanks to the new Joystick, “Rubber Touch” finished for best control of the movements along the four direction axes, the 'DRC Settings' menu can be adjusted and navigation is also possible through the 'Navy Command' function if the system features an Audison bit Play HD with video output connected to a monitor.
Features

EISA Award 2014-2015

The AP8.9 bit built-in processor amplifierr has been given the EISA Award for the In-Car Integration category, attaining the title of “European In-Car Integration 2014-2015".

מפרט טכני
  • POWER SUPPLY :
    Voltage:       7.5 ÷ 15 VDC
    Idling current:   1.5 A
    Switched off:   <0.04 mA
    Consumption @ 14.4 VDC 2Ω Max Musical Power (without CPL):   30 A
    Remote IN   7 ÷ 15 VDC (1 mA)
    Remote OUT   11 ÷ 15 VDC (200 mA)
    Fuse   30 A
    ART (Automatic Remote Turn on/off)   Speakers to input – selectable
    AST (Automatic Signal Turn on/off)   Pre-In to input – selectable
    CPL (Continuous Power Limiting)   Max continuous power – selectable
  • AMPLIFIER STAGE :
    Distortion – THD (1kHz @ 4Ω, 90% Power):       0.05 %
    Bandwidth (-3 dB, 2 V RMS, 4Ω):   10 ÷ 22k Hz
    S/N ratio @ A weighted, 1V, Max Power:   95 dBA
    Damping factor @ 1 kHz, 2 V RMS, 4Ω:   >70
    Input sensitivity:   2 ÷ 15 V RMS
    Input impedance:   15k Ω
    LOAD IMPEDANCE (MIN):
    • 8 Ch:       2Ω
    • 4 Ch – Bridge (1-2) (3-4) (5-6) (7-8):   4Ω
    OUTPUT POWER (RMS) @ 12.0 ÷ 14.4 VDC, 1% THD:
    • 8 Ch @ 4Ω:       35 W x 8
    • 8 Ch @ 2Ω:   65 W x 8
    • 4 Ch – (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω:   130 W x 4
    OUTPUT POWER (RMS) @ 14.4 VDC, 10% THD:
    • 8 Ch @ 4Ω:       45 W x 8
    • 8 Ch @ 2Ω:   85 W x 8
    • 4 Ch – (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω:   170 W x 4
  • CEA SPECIFICATIONS :
    Output power @ 4Ω, ⩽1% THD+N, 14.4 V:       35 W x 8 Ch
    SN ratio (ref. 1 W output):   85 dBA
  • SIGNAL CONNECTIONS
    Sub Out (RCA Pre-Out)   0 ÷ 4 V RMS Max
    Input Stage:
    • Config 1       Hi / Lo level FL-FR-RL-RR + N.2 customizable
    • Config 2   Hi / Lo level FL-FR-RL-RR + Stereo Aux In (DRC select.)
    • Optical IN (max 96 kHz/24 bit)   S/P-DIF PCM 96 kHz/24 bit max
  • DIGITAL SIGNAL PROCESSOR (32 bit Cirrus Logic; Clock speed: 147 MHz) :
    Crossover:       Full / Hi Pass / Lo Pass / Band Pass
    Crossover type and slope:
    Linkwitz @ 12/24 dB – Butterworth @ 6/12/18/24 dB
    Crossover Frequency:   68 steps @ 20 ÷ 20k Hz
    Phase inversion:   0° / 180°
    Analog Input Equalizer: Automatic De-Equalization
    Output Equalizer
    N.9 Parametrics Equalizers: ±12 dB;10 pole; 20 ÷ 20k Hz
    Time Alignment Distance   0 ÷ 510 cm / 0 ÷ 200.8 in.
    Time Alignment Delay   0 ÷ 15 ms
    Time Alignment Step   0,08 ms; 2,8 cm / 1.1 in.
    Time Alignment Fine Set   0,02 ms; 0,7 cm / 0.27 in.
    SYSTEM SET:
    Preset (Drive Preset)       Rotary switch for 7 installation Presets
    Acoustic Preset   N.2 DSP Memory, DRC selectable

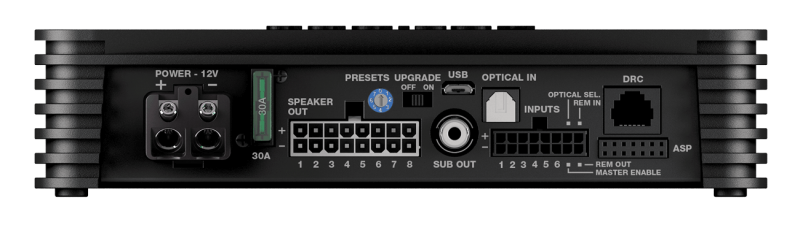

  • CONTROL CONNECTIONS :
    From / to personal computer       1 x micro USB-B
    To Audison Electronics   DRC controls
    ASP   Automatic Speaker Presence
    Optical / AUX select   12V control for Optical In / AUX enable
    Master enable   12V control for Master In enable
  • GENERAL REQUIREMENTS :
    PC connections       Micro USB (1.1 / 2.0 / 3.0)
    Software/PC requirements:
    Microsoft Windows (32/64 bit): XP, Vista, Windows 7, Windows 8
    Graphic card min. resolution:   800 x 600
    Ambient operating temperature range:   0 °C to 55 °C (32°F to 131°F)
  • SIZE / WEIGHT :
    Max size (mm/in.):       198 x 45,50 x 134 / 7.8 x 1.8 x 5.27
    Weight (kg/lb):   1.5 / 3.3
