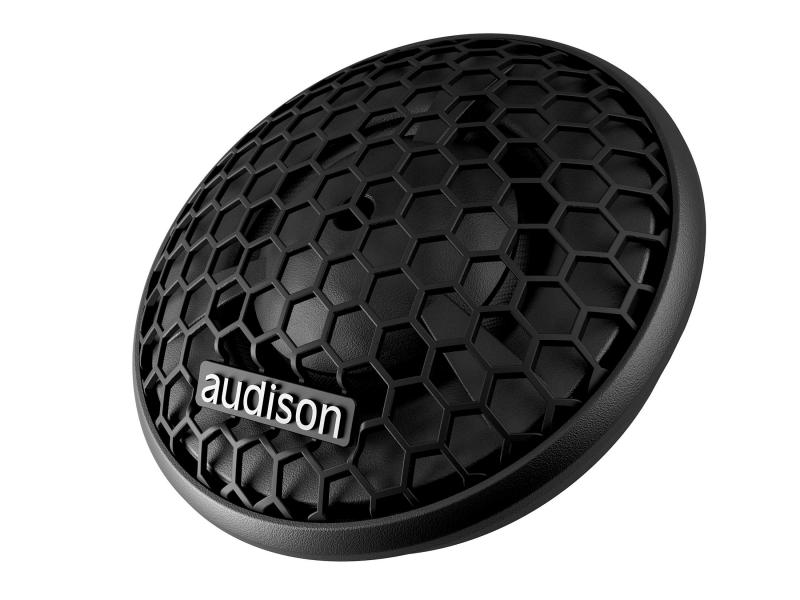

AP1 | TWEETER

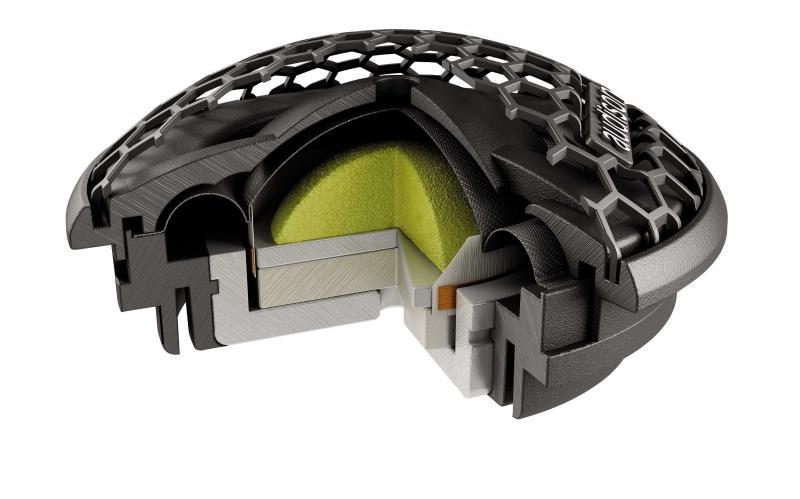

1 26 mm diameter diaphragm combined with a wide-roll surround
provides maximum efficiency and reduced resonance frequency.
2 Neodymium magnet with low carbon content plates, provides
reduced size and more linear sound reproduction, even during
the most demanding audio passages.
3 Acoustic lens designed to compensate for and fine tune the in-car
frequency response anomalies in the 10 kHz – 13 kHz bandwidth
caused by restrictive OEM grilles in critical OEM placements.

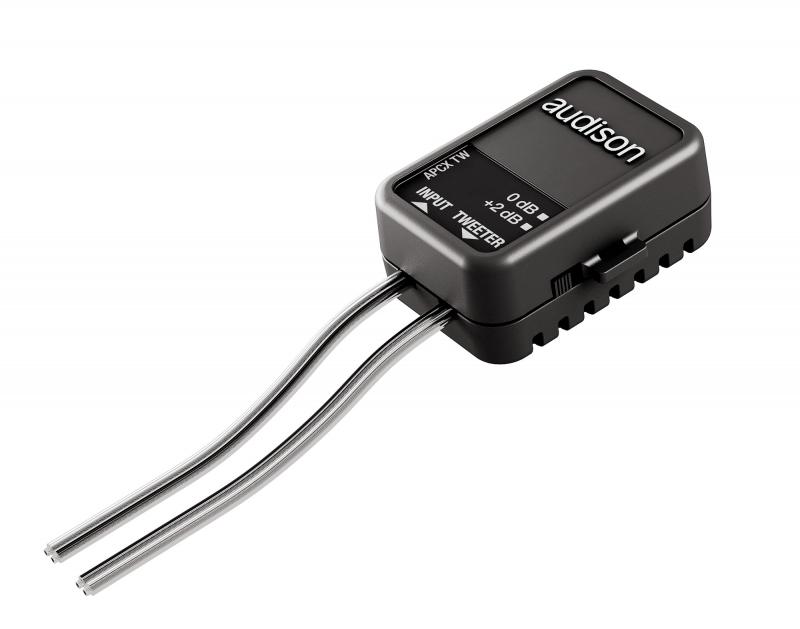

4 Extremely compact dedicated passive crossover APCX TW
supplied with the product, optimised for OEM Integration,
featuring an attenuation switch (0 dB, +2 dB) to tune the in-car
response according to different installation conditions.
5 Passive crossovers are supplied with “OEM Integration compliant”
fast-on connectors. The ends, different in each of the two poles,
eliminate any possible connection errors and speed up the
required installation time.
6 Wide array of mounting accessories supplied with the product,
for high fitment flexibility in OEM Integration.
7 CCAW (Copper Clad Aluminium Wire) ultra-light ferrofluid cooled
voice coil is wound on a Kapton former, for better heat dissipation.
8 Dome profile and motor are optimised with FEM (Finite Element
Method) simulation technology.
9 Developed with the KLIPPEL suite.
