- מותג: Audison
- דגם: AP 6.5
- גליון נתונים טכני: לחץ להורדה
- מדריך למשתמש: לחץ להורדה

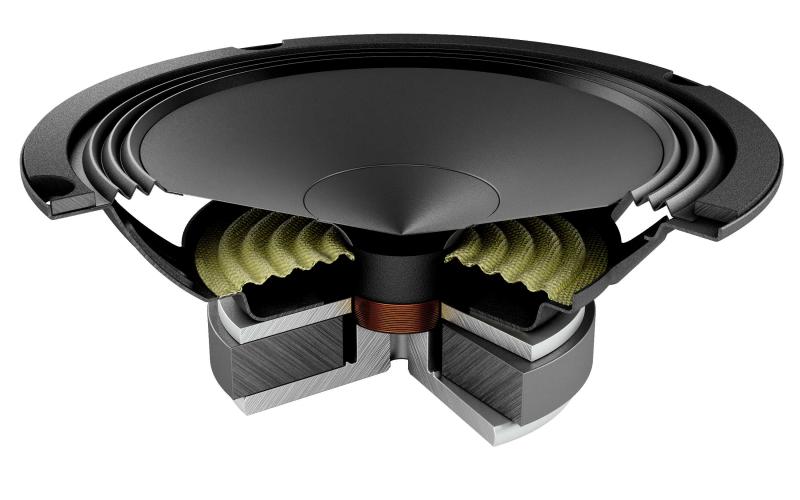

1 32 mm pure copper mobile voice coil, for high power handling
and outstanding low frequency control.
2 Water-repellent treated paper cone, featuring a profile developed
with FEM (Finite Element Method) simulation technology and
optimized with the Klippel R&D Scan Vibrometer.
3 No passive crossover required to maximize efficiency: the cone
is optimised with the Klippel R&D Scan Vibrometer to obtain a
calibrated mechanical low-pass cut-off frequency.
4 Reduced mounting depth, providing ease of installation in OEM
placements.
5 TPU (Thermoplastic Polyurethane) surround, featuring the exclusive
shallow “Triple Wave” profile, for maximum excursion linearity.
6 Compact basket, protected by abrasion-resistant and scratch-proof
coating, the motor affixed with damping epoxy adhesive.
7 High current fast-on terminal with double contact on positive
and negative poles for high flexibility and quick connection. The
terminal features a temperature resistant plastic cover, protecting
it against accidental short circuits.
8 Developed with the KLIPPEL suite.
Tecnical Data
| Comp | Woofer |
| Size | 165 mm (6,5") |
| Power Handling | 70 W Continuous Power 210 W Peak Power |
| Impedance | 4 Ω |
| Frequency Response | 60 ÷ 5k Hz |
| Sensitivity | 93,5 dB/Spl |
| Magnet | High density flux ferrite |
| Dome | Water-repellent treated paper cone |
- TECHNICAL SPECIFICATIONS :
- Component Woofer
- Size mm (in.) 165 (6.5)
- Power Handling W
peak 210
continuos 70 - Impedance Ω 4
- Frequency Response Hz 60 ÷ 5k
- Magnet size D x h mm (in.) 85 x 40 x 15 (3.35 x 1.57 x 0.59)
- Weight of one speaker kg (lb) 0,78 (1.72)
- Voice Coil Ø mm (in.) 32 (1.26)
