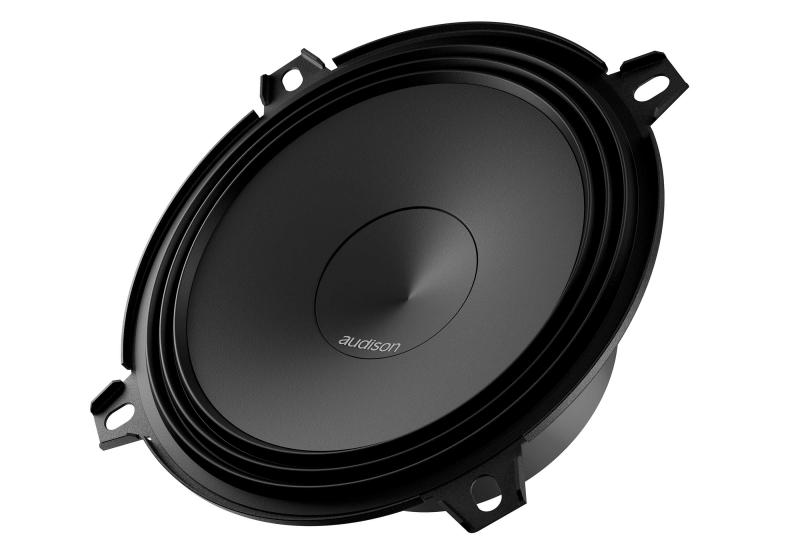

AP 5 | WOOFER

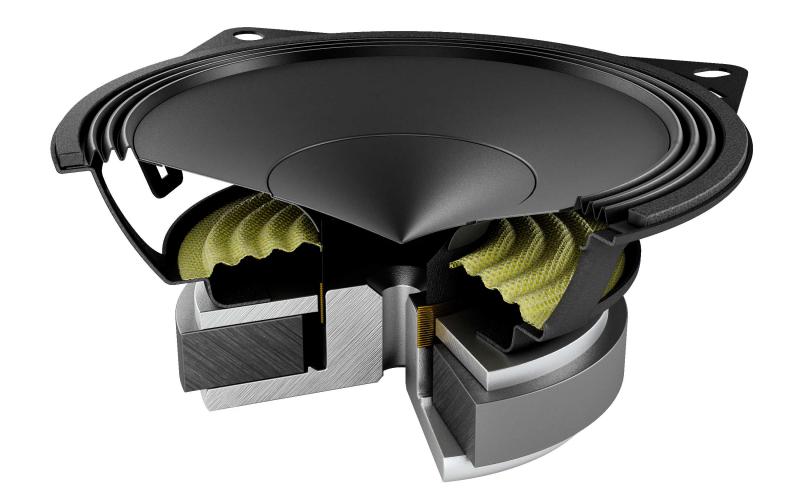

1 32 mm pure copper mobile voice coil, for high power handling
and outstanding low frequency control.
2 Water-repellent treated paper cone, featuring a profile developed
with FEM (Finite Element Method) simulation technology and
optimized with the Klippel R&D Scan Vibrometer.
3 No passive crossover required to maximize efficiency: the cone
is optimised with the Klippel R&D Scan Vibrometer to obtain a
calibrated mechanical low-pass cut-off frequency.
4 Reduced mounting depth, providing ease of installation in OEM
placements.
5 TPU (Thermoplastic Polyurethane) surround, featuring the exclusive
shallow “Triple Wave” profile, for maximum excursion linearity.
6 Compact basket, protected by abrasion-resistant and scratch-proof
coating, the motor affixed with damping epoxy adhesive.
7 High current fast-on terminal with double contact on positive
and negative poles for installation flexibility and quick connection.
The terminal features a temperature resistant plastic cover,
protecting it against accidental short circuits.
8 Developed with the KLIPPEL suite.
